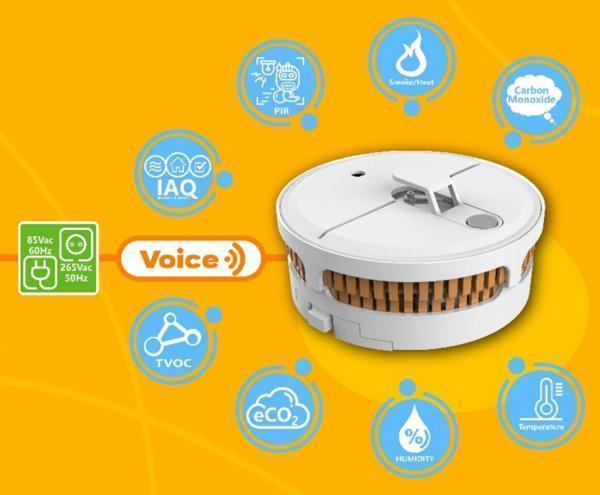

UL217 9th ed. Wireless Smoke, CO & Air Quality Sensor

UL217 9th ed. Wireless Smoke, CO & Air Quality Sensor

Our latest UL 217 9th ed. Wireless 9-in-1 smoke, CO & Air quality sensor combines practicality with functionality. The device has flexible multi-sensor options available to suit all types of needs, whether indoor or outdoor, or via DC battery power or AC mains outlet. Easy to clean & maintain with self-test & calibration for up-to-date detection. Ideal for integration with smart home, fire alarm and security system.



  • 9-in-1 functions: smoke, heat, CO, humidity, temperature, air quality, motion & voice
  • Advanced air quality monitor capability: detects IAQ, TVOC, eCO2, CO concentration
  • Sensing algorithm of ambient temperature and relative humidity
  • Designed to meet UL 217 9th ed. & EN 14604 Standard
  • The smoke detector can be integrated with LoRa, Zigbee, Z-wave, Sigfox, NB-IoT, WiFi, Bluetooth wireless technologies
  • Ideal for fire alarm, security intrusion, smart home, IoT, or connected device application
  • Silence / hush function to delay or stop alarm sound
  • Manual testing to confirm battery life & operation
  • Automatic calibration of smoke sensitivity
  • LED Indicator for visual alert
  • Periodic self-testing to ensure smoke detection accuracy
  • Low battery alert indicator
  • Loud buzzer & voice sound output for smoke & gas warning
  • Available in UL217 or EN14604 temporal three sound pattern
  • Available in a variety of combinations: Smoke & heat combination detection, smoke & CO detection, smoke & motion detection etc.
  • Available in DC or AC Mains power option.
  • Easy installation and maintenance
  • Modern design & aesthetics



Specifications:
  • Voltage: DC 3V (for lithium battery)
  • Standby Current: max 15uA; 10uA (with RF function)
  • Alarm current: max 100mA; 60mA (with RF function)
  • Temperature Range: 0 degree Celsius to 49 degree Celsius
  • Color: White

For any product inquiry or development project, please contact one of our specialists at Key Security Taiwan for more information.



Order Information:
  • Minimum Order: Negotiable
  • OEM/ODM Product, Buyer's Label Offered
